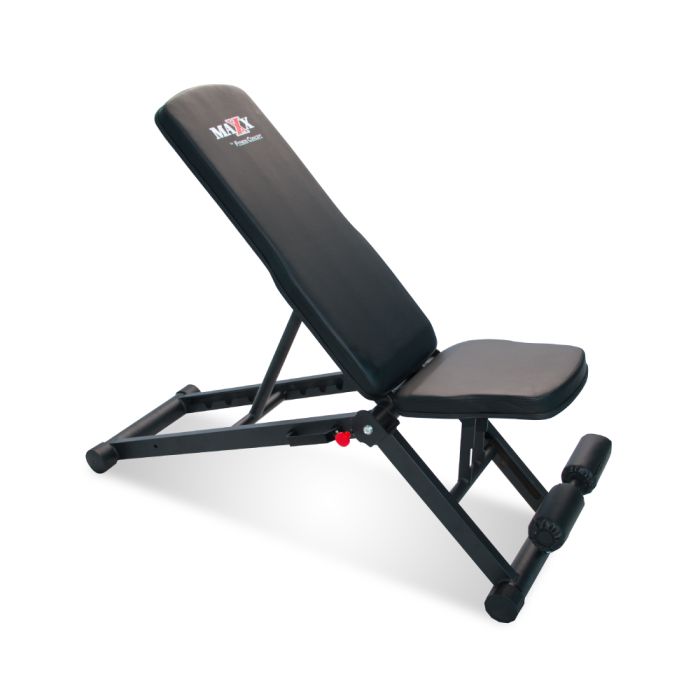

MAXX FITNESS FOLD FLAT BENCH

FOLDED MEASUREMENT L x W x H : 138.5 x 44 x 14 CM

PRODUCT WEIGHT : 15.3KG

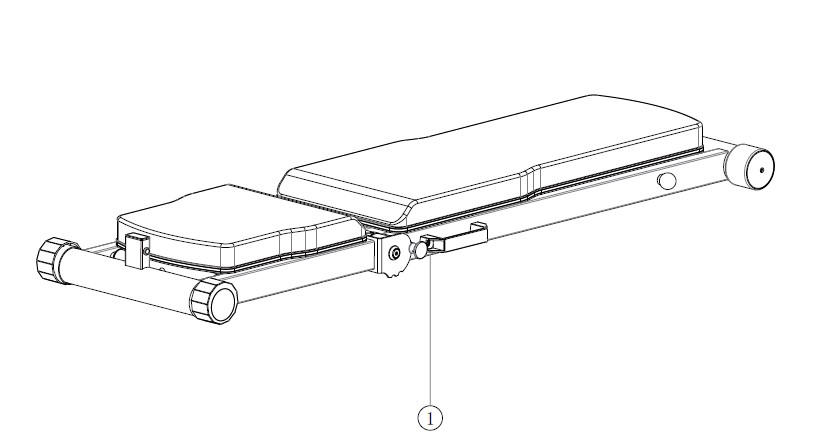

Take out the product.

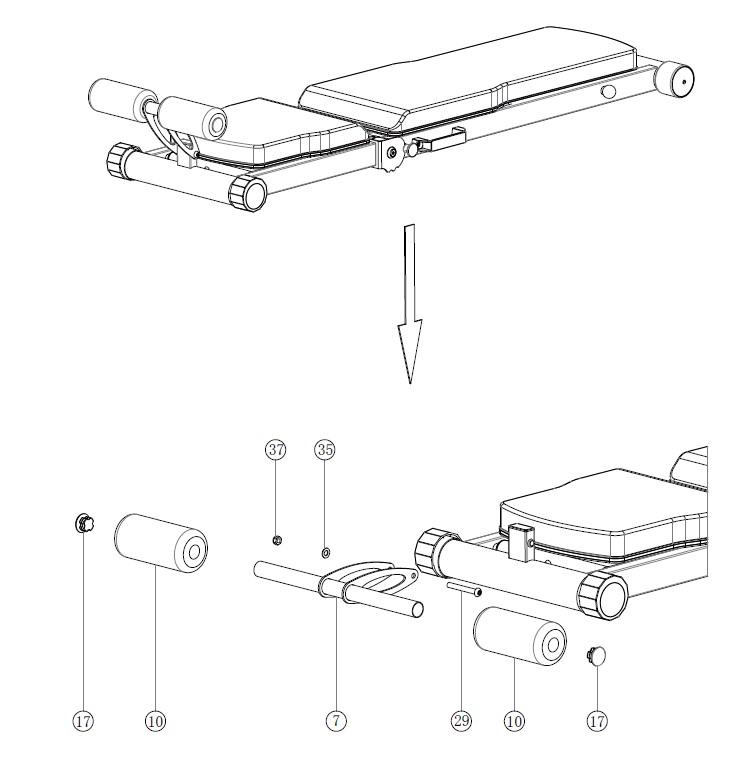

Install the hook tube.

Pre-use instructions

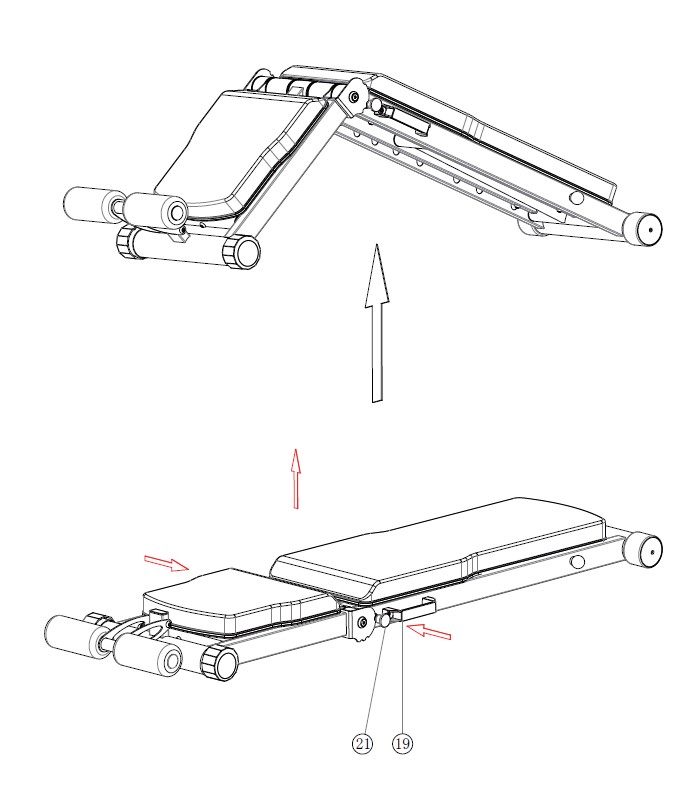

Hold the #19 - pull handle on both sides with both hands, press and lift the #21 aluminium alloy handle with the thumb, release the thumb and move the machine upward to the #24 - movable pull pin stuck on the card slot of the front main frame.

Adjust backrest and seat cushion

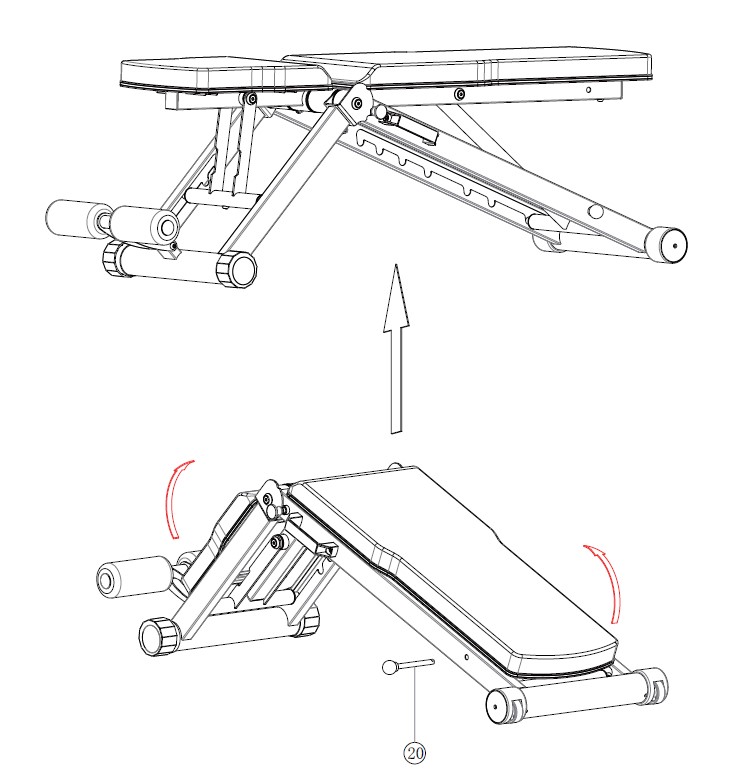

First of all, pull out the rear #20-latch, please pull up the backrest cushion by hand, and put the backrest adjustment bracket safely in the gear slot of the rear main frame. Lift the seat cushion by hand and place the seat cushion adjustment bracket securely in the gear slot on the front main frame.

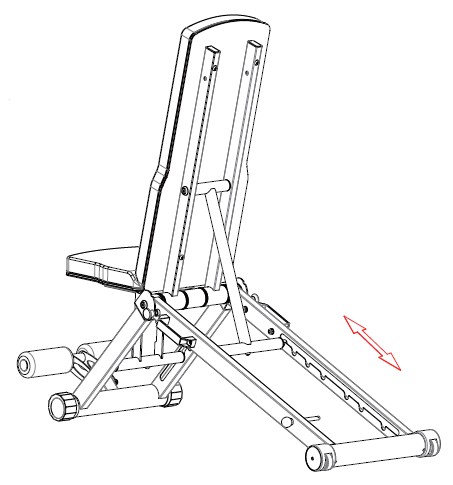

Adjust backrest and seat cushion

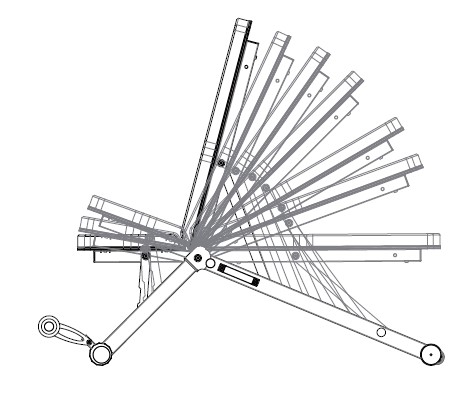

There are 7 gear slots on the rear main frame. To adjust the Angle of the backrest, please pull up the backrest cushion by hand and place the backrest adjustment bracket safely in the gear slot on the rear main frame. Lift the seat cushion by hand and place the seat cushion adjustment bracket securely in the gear slot on the front main frame.

Back cushion Angle

1st = 105°
2nd = 115°
3rd = 125°
4th = 135°
5th = 150°
6th = 160°
7th = 180°

Seat cushion Angle

1st = 90°
2nd = 10°
3rd = 20°
